Dumper

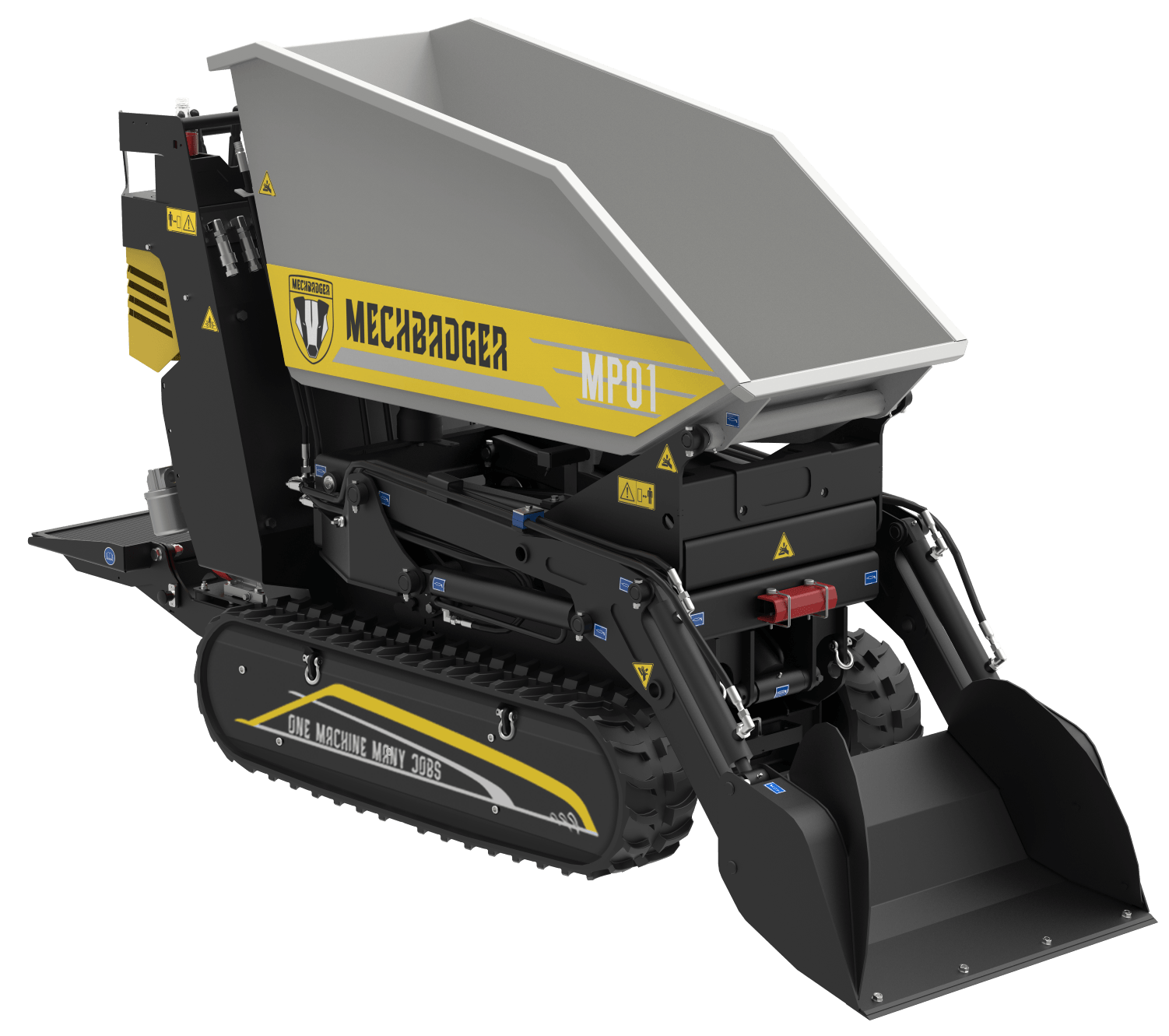

TRACKED DUMPER


The MECHBADGER tracked dumper can be used on any surface with extreme precision thanks to its compact size and ergonomic controls. It gives its best when spaces are tight thanks to its agility and precision. Designed and developed entirely in ITALY, it represents the multifunctional machine par excellence


Motorisation

Powerful engines (petrol or electric) with speed regulation, equipped with hydrostatic traction which allows simple and comfortable use

Dimensions

Ultra-compact size, ideal for working in confined spaces and passing through standard doors, ensures maximum day-to-day efficiency

Design

The robust design ensures a long service life with low wear and tear, excellent ratio of low weight to maximum payload.

GALLERY


  • jump

    Add a short description

    Button
  • TECHNICAL FEATURES


    Hydrostatic traction


    • Simple and immediate ignition: thanks to the hydrostatic drive system, no frequent gear changes are required and the user can concentrate entirely on his work. Ideal for rental companies or if the user is replaced frequently.
    • Hydraulically activated, pilot controlled forward and reverse lever for precision operation
    • The hydraulically activated traction system and working hydraulics can be activated independently
    • Reduction of maintenance and service costs thanks to the low-wear drive system

    Maintenance


    • Valuable time can be saved during maintenance, resulting in cost savings. With optimal and quick access to the hydraulics or engine, the machine can get right back to work.
    • Optimal service access to safely perform daily checkup procedures
    • Quick access to maintenance points


    Request Brochure

    Standard equipment


    • Tracked undercarriage with hydrostatic transmission.
    • Rubber tracks made in monobloc structure with steel wire core and treated steel inserts.
    • Internal combustion engine, air cooling; self-wrapping manual pull start.
    • Manually operated hydrostatic transmission with triple gear pump and fixed displacement orbital motors. Steering by rotating the tracks.
    • Ergonomic and cushioned operator platform


    Motor HONDA GX390 12Hp
    Rpm 3600
    Goodwill Electric
    Travel motors 20 Lt/min - 5.3 gpm
    Negotiable slope 70% ( 35° )
    Traction force 10003 N - 2315 lb
    Services pump 30 Lt/min - 8gpm
    Pressure Services 150 bar - 2175 PSI
    Weight ( PU Equipment ) 990 Kg ( 540 450 ) - 2083 lb
    Load capacity 800 Kg - 2182 lb
    Cargo volume 0.32 m3 - 0.42 yd3
    SAE cargo volume 0.41 m3 - 0.54 yd3
    Speed 4.5 Km/h - 3mph

    Data, characteristics and illustrations are not binding and may be changed without notice.

    Are interested? Contact us

    INTERCHANGEABLE'

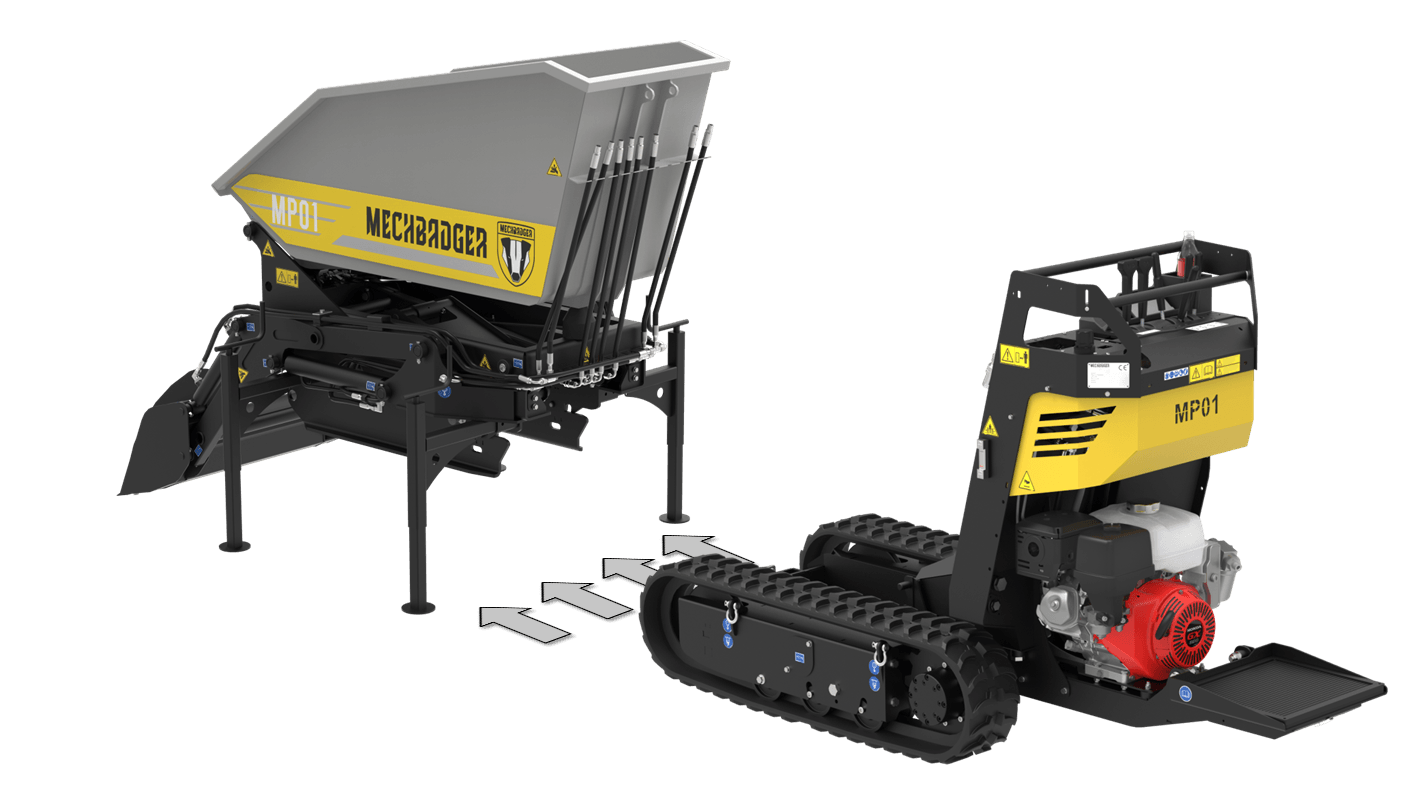

    By configuring the Power Unit with a single piece of equipment, you will be able to purchase the equipment indicated below at any time, which can be quickly interchanged in less than 4 minutes, you will be able to use different complete machines with a single Power Unit.

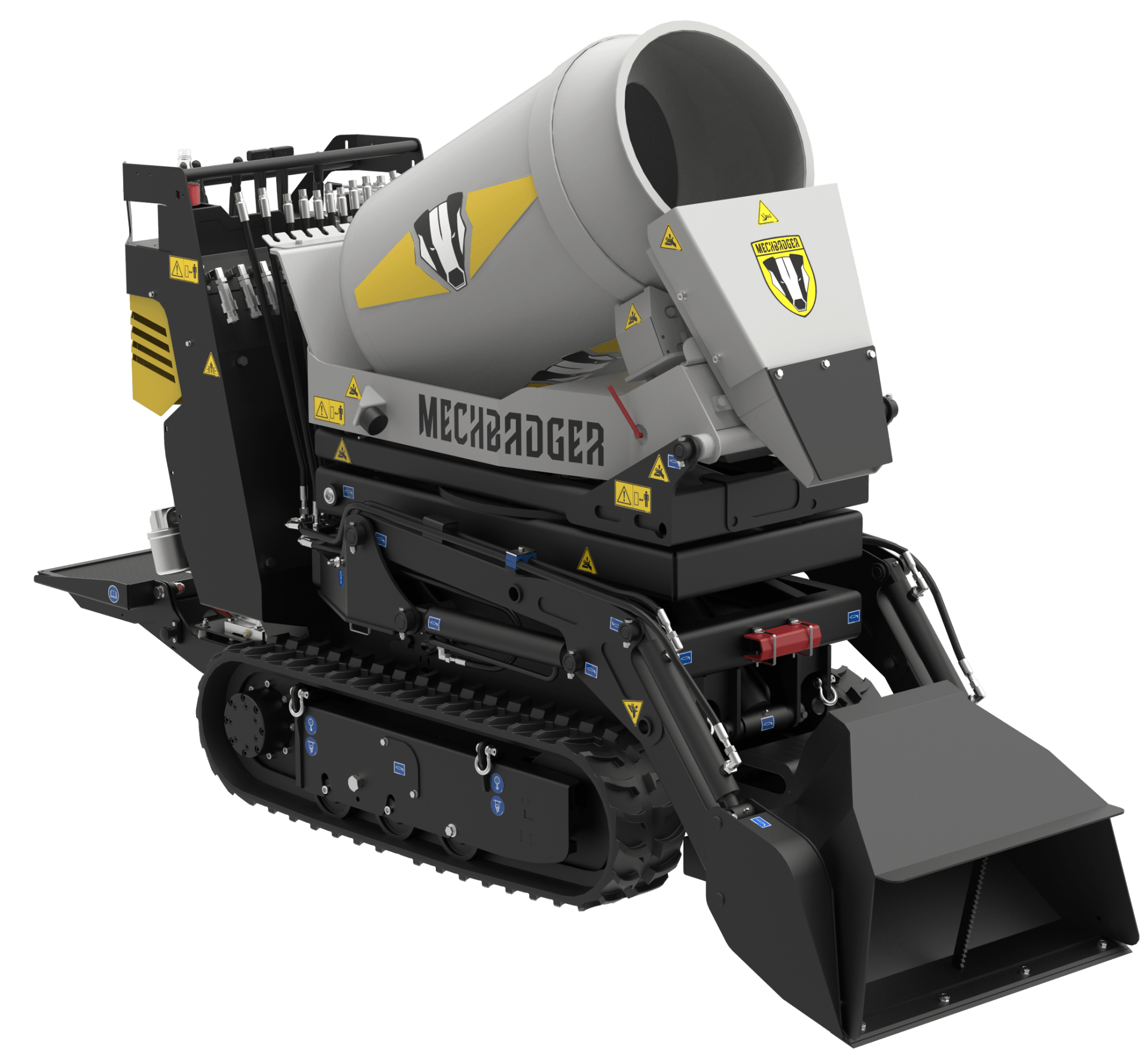

    Concrete mixer

    Self loading and bag breaker

    90° rotation of the barrel and elevation with pantograph

    Pala Caricatrice

    Configurable bucket leveling

    Frontal quick coupling with hydraulic coupling

    Excavator

    Shape tipping

    Front translatable plate and front leveling blade

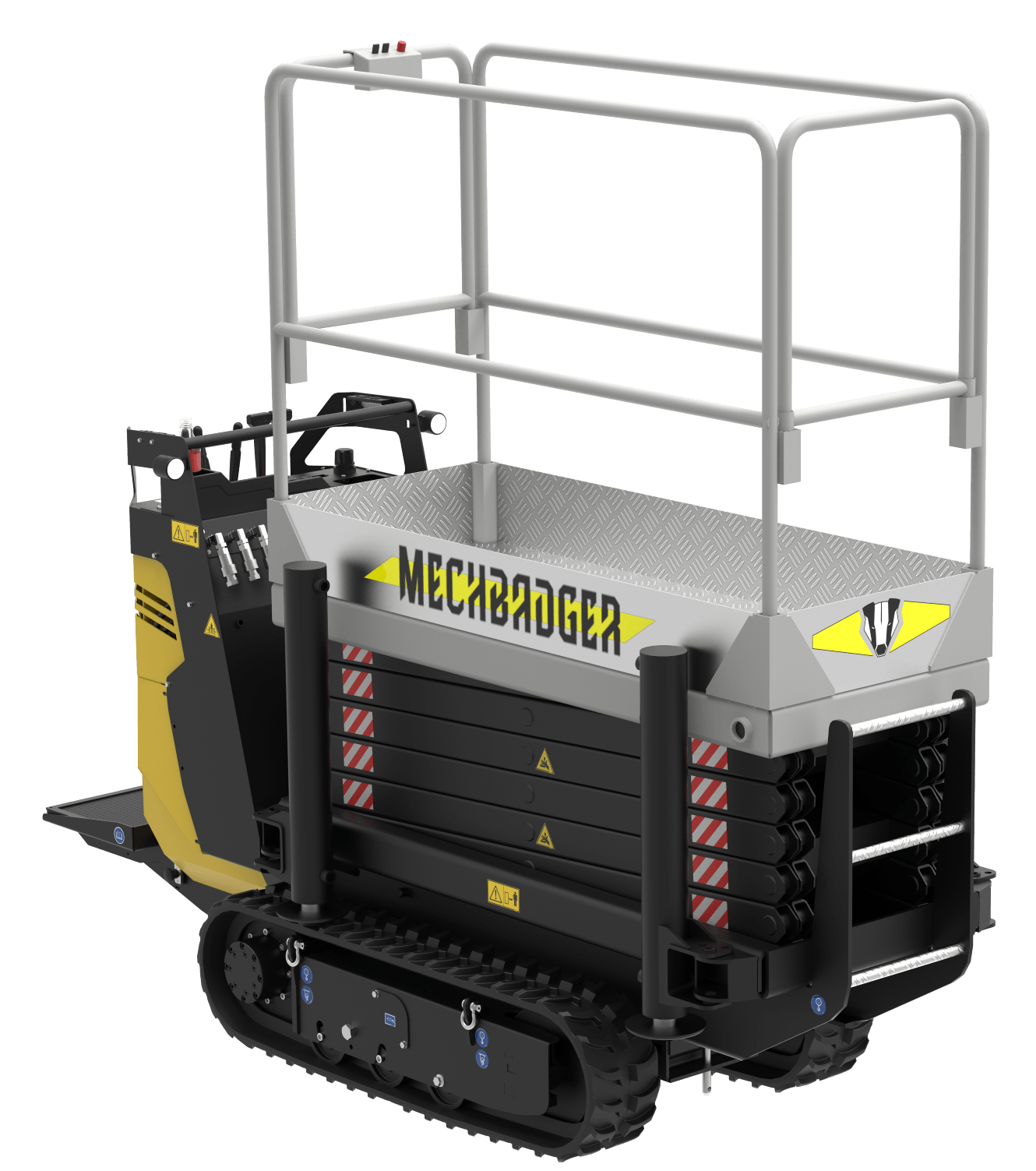

    Aerial platform

    Working height 9 meters

    Self-levelling stabilizers, forward movement at height.

    Charger

    Electronic fork leveling

    Frontal quick coupling with hydraulic coupling

    YOUR Equipment

    CUSTOM ON REQUEST

    Together we will design the most congenial equipment for you.
