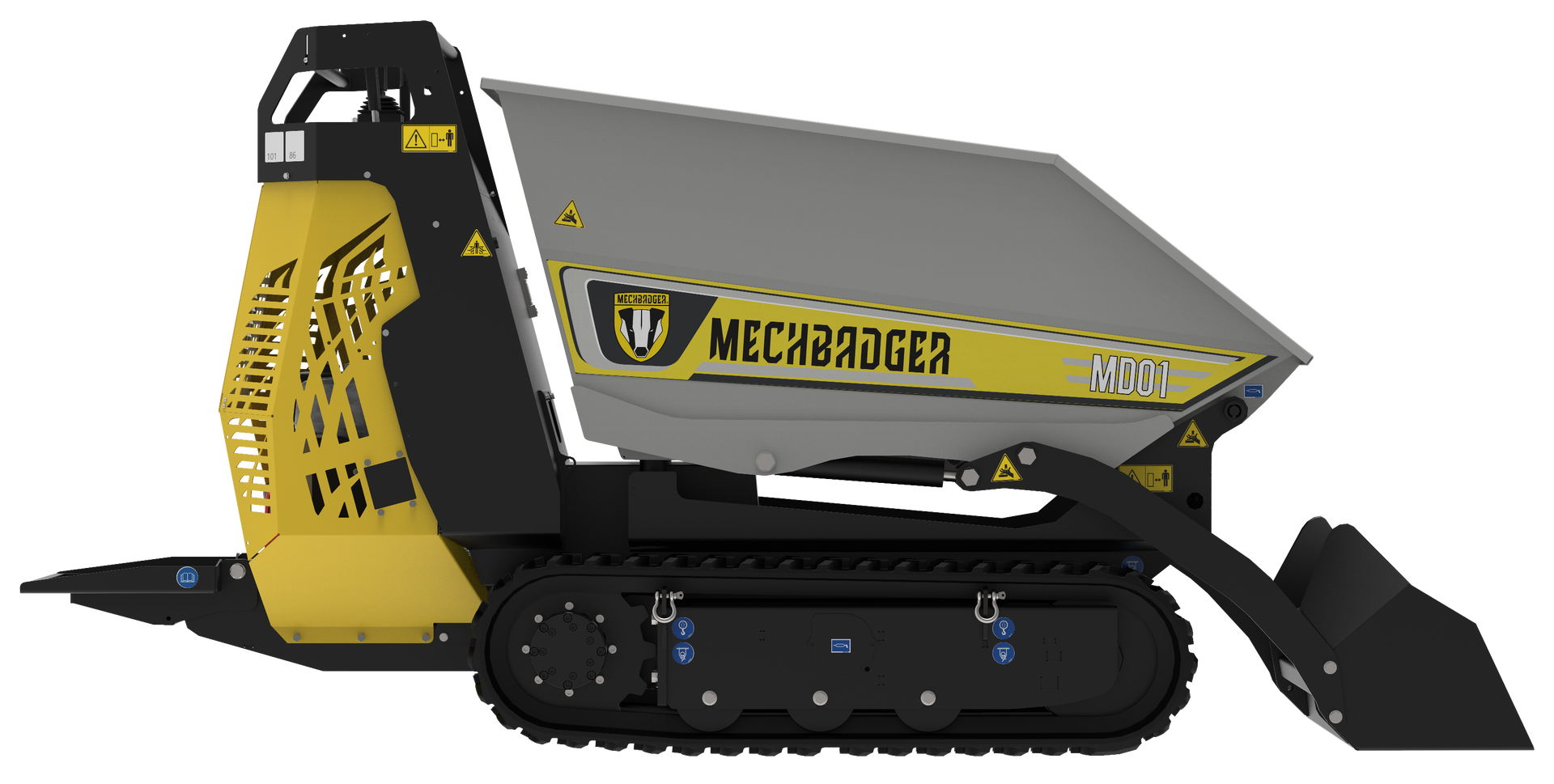

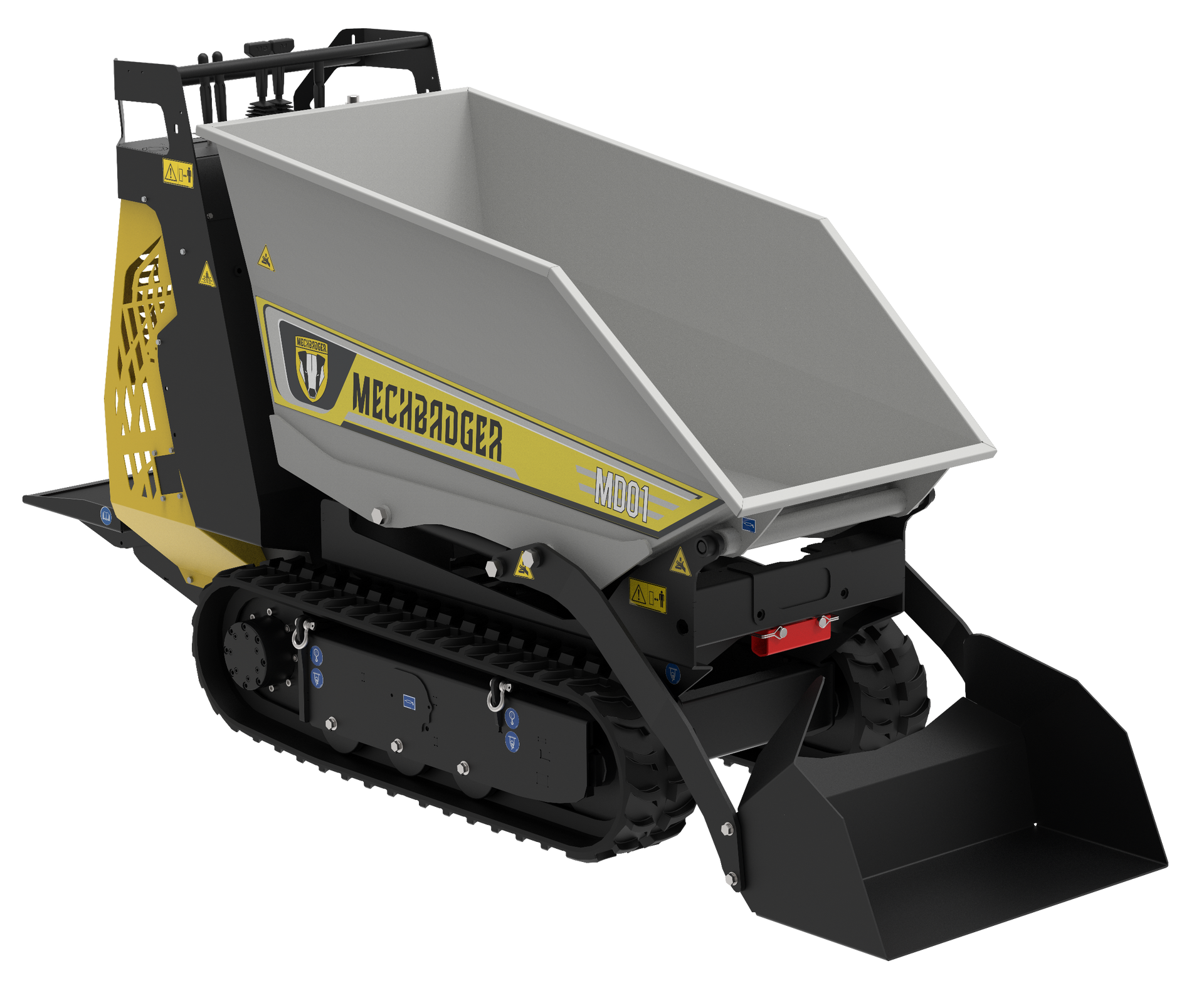

THE TRACKED MINI DUMPER
THE TRACKED MINI DUMPER
The MECHBADGER tracked dumper can be used on any surface with extreme precision thanks to its compact size and ergonomic controls. It gives its best when spaces are tight thanks to its agility and precision. Entirely designed and developed in ITALY.
Motorisation
Powerful engines (Petrol, Diesel and Electric) with speed regulation, equipped with hydrostatic traction which allows simple and comfortable use
Dimensions
Ultra-compact size, ideal for working in confined spaces and passing through standard doors, ensures maximum day-to-day efficiency
Design
The robust design ensures a long service life with low wear and tear, excellent ratio of low weight to maximum payload.
GALLERY
TECHNICAL FEATURES
Hydrostatic traction
- Simple and immediate ignition: thanks to the hydrostatic drive system, no frequent gear changes are required and the user can concentrate entirely on his work. Ideal for rental companies or if the user is replaced frequently.
- Hydraulically activated, pilot controlled forward and reverse lever for precision operation
- The hydraulically activated traction system and working hydraulics can be activated independently
- Reduction of maintenance and service costs thanks to the low-wear drive system
Maintenance
- Valuable time can be saved during maintenance, resulting in cost savings. With optimal and quick access to the hydraulics or engine, the machine can get right back to work.
- Optimal service access to safely perform daily checkup procedures
- Quick access to maintenance points
Standard equipment
- Tracked undercarriage with hydrostatic transmission.
- Rubber tracks made in monobloc structure with steel wire core and treated steel inserts.
- Endothermic petrol and electric engine with air cooling; automatic start.
- Manually operated hydrostatic transmission with triple gear pump and fixed displacement orbital motors. Steering by rotating the tracks.
- Ergonomic and cushioned operator platform
| Motorisation | Petrol, Diesel, Electric |
|---|---|

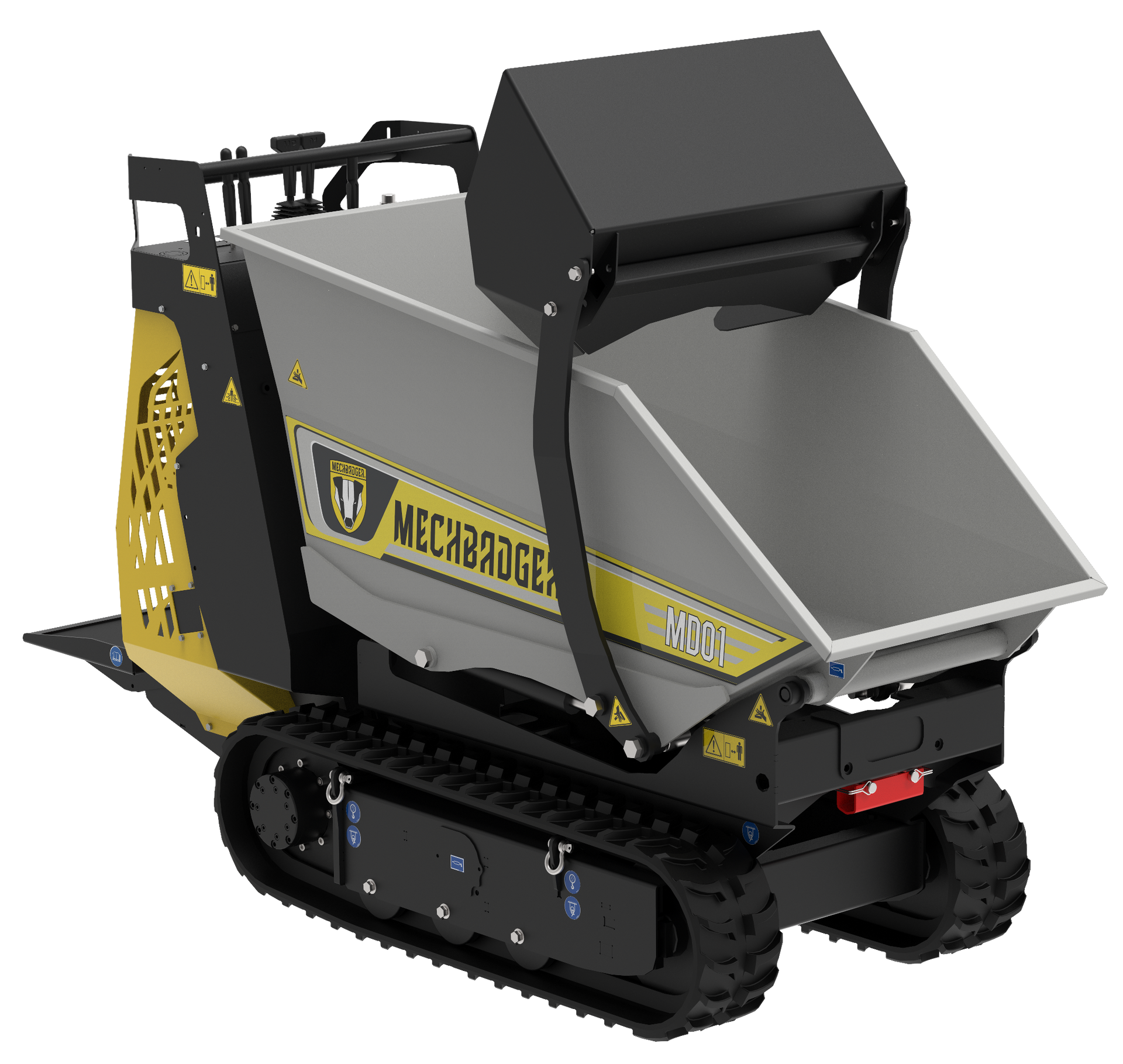

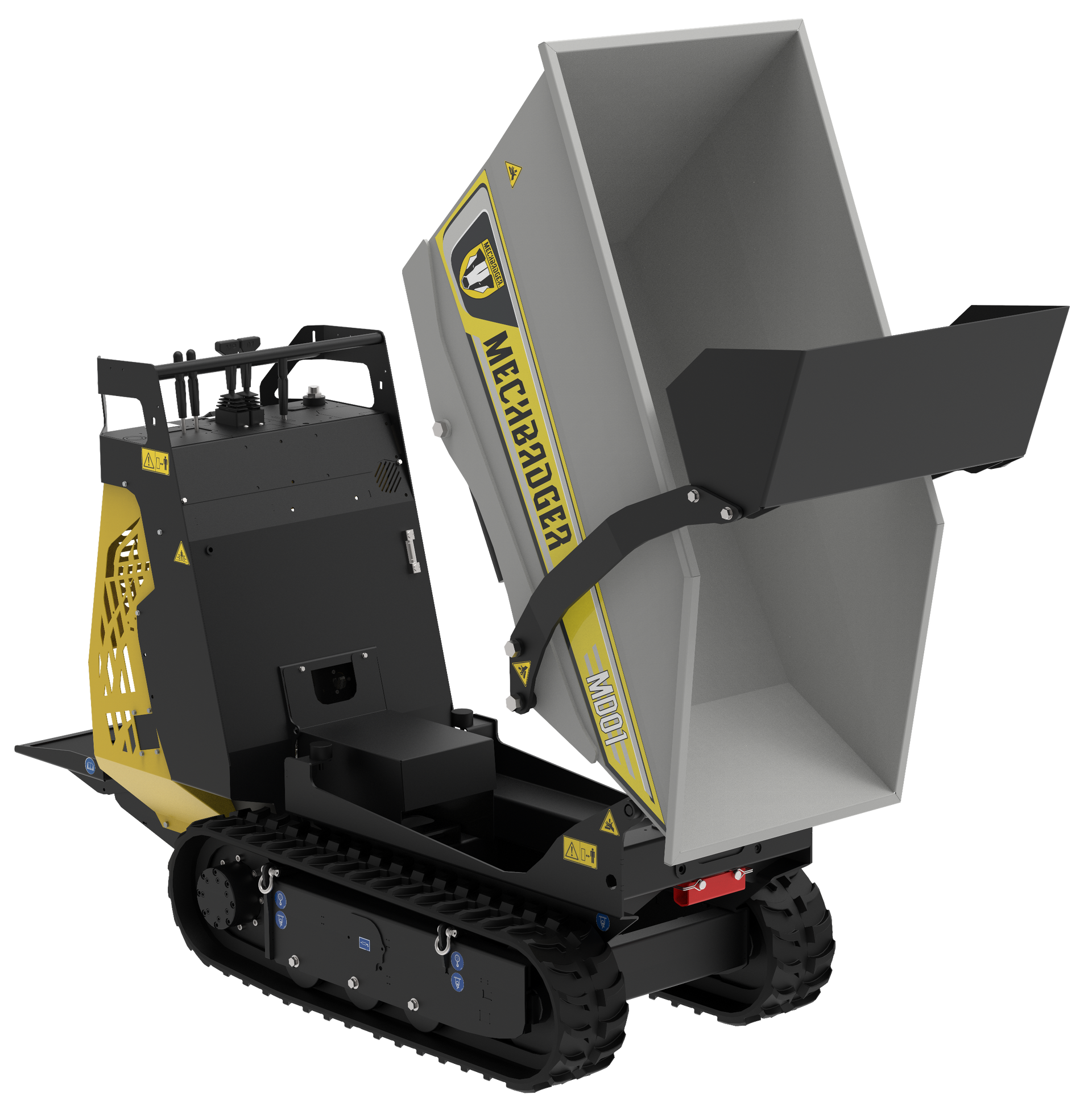

| Preparations | High Dump, Self Loading Arm |
| Travel motors | 20 Lt/min - 5.3 gpm |
| Negotiable slope | 70% ( 35° ) |
| Traction force | 10003 N - 2315 lb |
| Services pump | 15 Lt/min - 4gpm |
| Pressure Services | 150 bar - 2175PSI |
| Weight | 900 Kg - 2080 lb |
| Load capacity | 800 Kg - 2182 lb |
| Cargo volume | 0.42 m3 - 0.53 yd3 |
| SAE cargo volume | 0.55 m3 - 0.71 yd3 |
| Speed | 4.5 Km/h - 3 mph |
Data, characteristics and illustrations are not binding and may be changed without notice.
