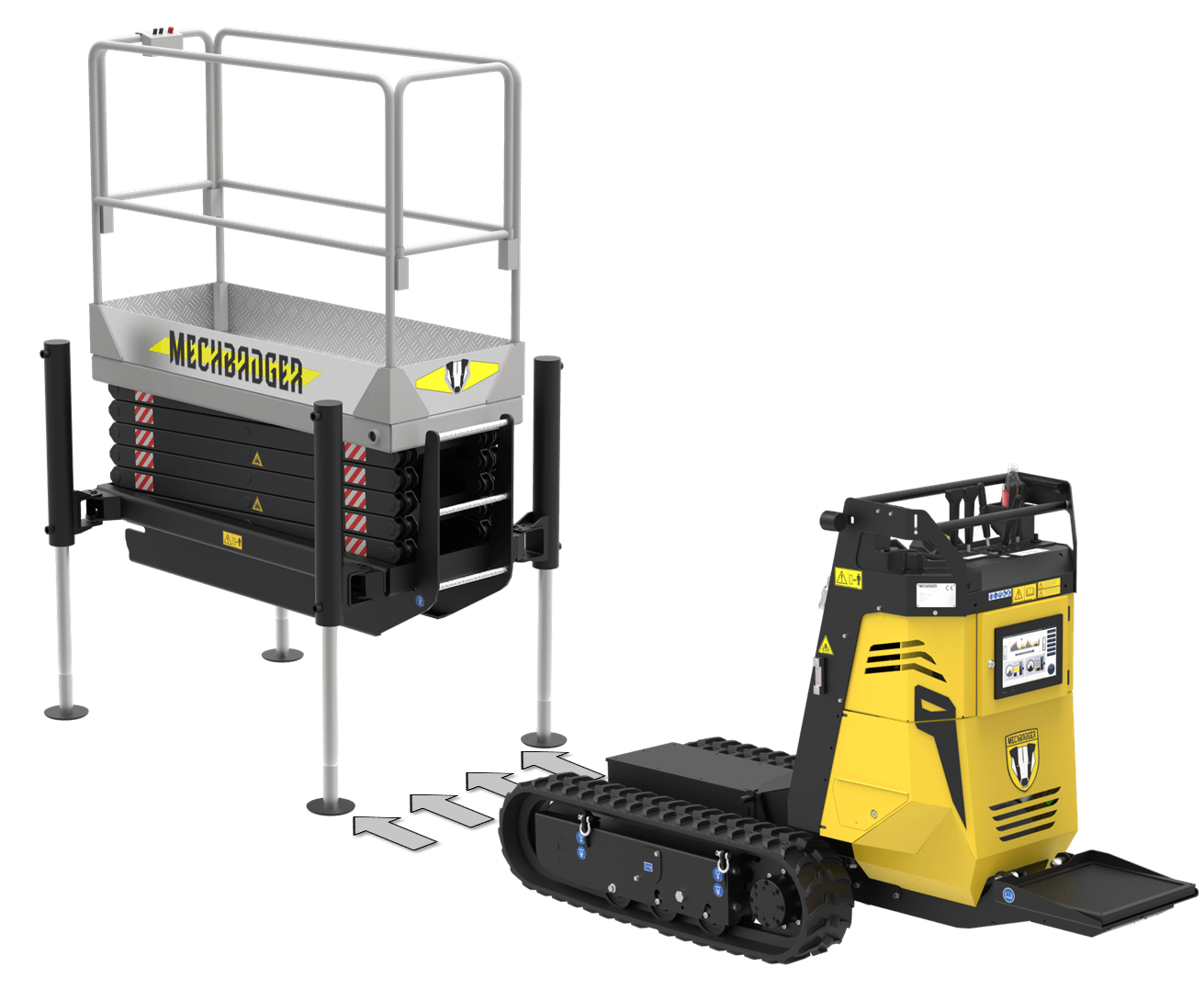

Platform D

PLATFORM

INNOVATION & RELIABILITY


The MECHBADGER Platform can be used on any surface with extreme precision thanks to its compact size and ergonomic controls. It gives its best when spaces are tight thanks to its agility and precision. Entirely designed and developed in ITALY, it represents the ELECTRIC multifunction machine par excellence


Motorisation

Powerful 100% electric motors with proportional speed regulation, equipped with hydrostatic traction which allows simple and comfortable use

Dimensions

Ultra-compact size, ideal for working in confined spaces and passing through standard doors, ensures maximum day-to-day efficiency

Design

The robust design ensures a long service life with low wear and tear, excellent ratio of low weight to maximum payload.

TECHNICAL FEATURES


Hydrostatic traction


  • Simple and immediate ignition: thanks to the hydrostatic drive system, no frequent gear changes are required and the user can concentrate entirely on his work. Ideal for rental companies or if the user is replaced frequently.
  • Hydraulically activated, pilot controlled forward and reverse lever for precision operation
  • The hydraulically activated traction system and working hydraulics can be activated independently
  • Reduction of maintenance and service costs thanks to the low-wear drive system

Maintenance


  • Precious time can be saved during maintenance, resulting in cost savings, the electric motor does not need maintenance.
  • Optimal service access to safely perform daily checkup procedures
  • Quick access to maintenance points


Request Brochure

Standard equipment


  • Tracked undercarriage with hydrostatic transmission.
  • Rubber tracks made in monobloc structure with steel wire core and treated steel inserts.
  • 100% ELECTRIC engine, air cooling; automatic key start
  • Manually operated hydrostatic transmission with triple gear pump and fixed displacement orbital motors. Steering by rotating the tracks.
  • Ergonomic and cushioned operator platform


Motor KOHLER KD15-440 10Hp
Goodwill Electric
Travel motors 20 Lt/min - 5.3 gpm
Negotiable slope 70% ( 35° )
Traction force 10003 N - 2315 lb
Services pump 30 Lt/min - 8 gpm
Pressure Services 150 bar - 2175PSI
Weight ( PU Equipment ) 1731 Kg ( 550 1181 ) - 3695lb
Scope 200 Kg - 440lb
Working height 7050 mm - 23ft
Speed 4.5 Km/h - 3mph

Data, characteristics and illustrations are not binding and may be changed without notice.

Are interested? Contact us

INTERCHANGEABLE'


By configuring the Power Unit with a single piece of equipment, you will be able to purchase the equipment indicated below at any time, which can be quickly interchanged in less than 4 minutes, you will be able to use different complete machines with a single Power Unit.

Dumper

Self loading and tipper

90° rotation of the caisson and elevation with pantograph

Pala Caricatrice

Configurable bucket leveling

Frontal quick coupling with hydraulic coupling

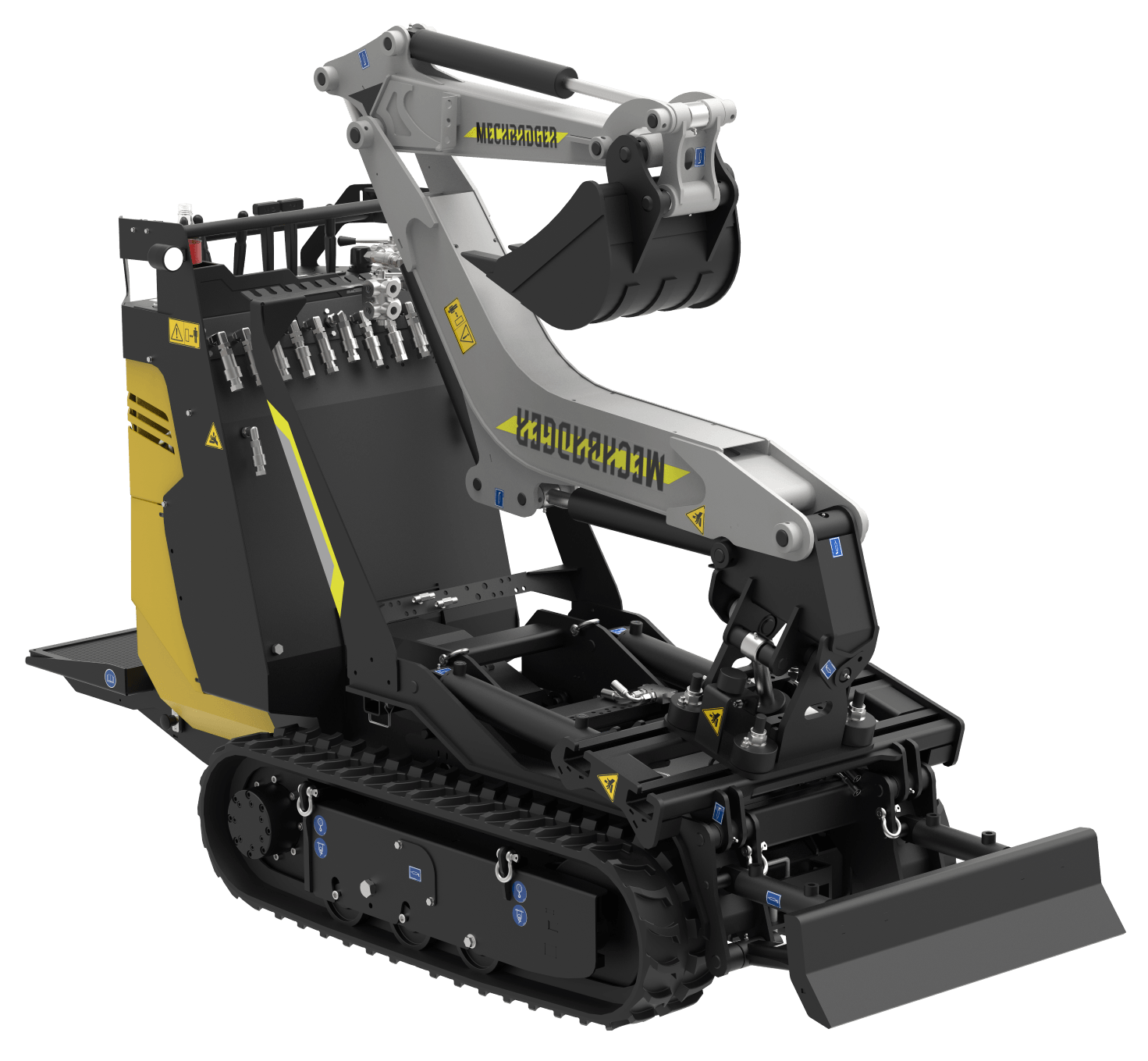

Excavator

Shape tipping

Front translatable plate and front leveling blade

Charger

Electronic Fork Leveling

Frontal quick coupling with hydraulic coupling

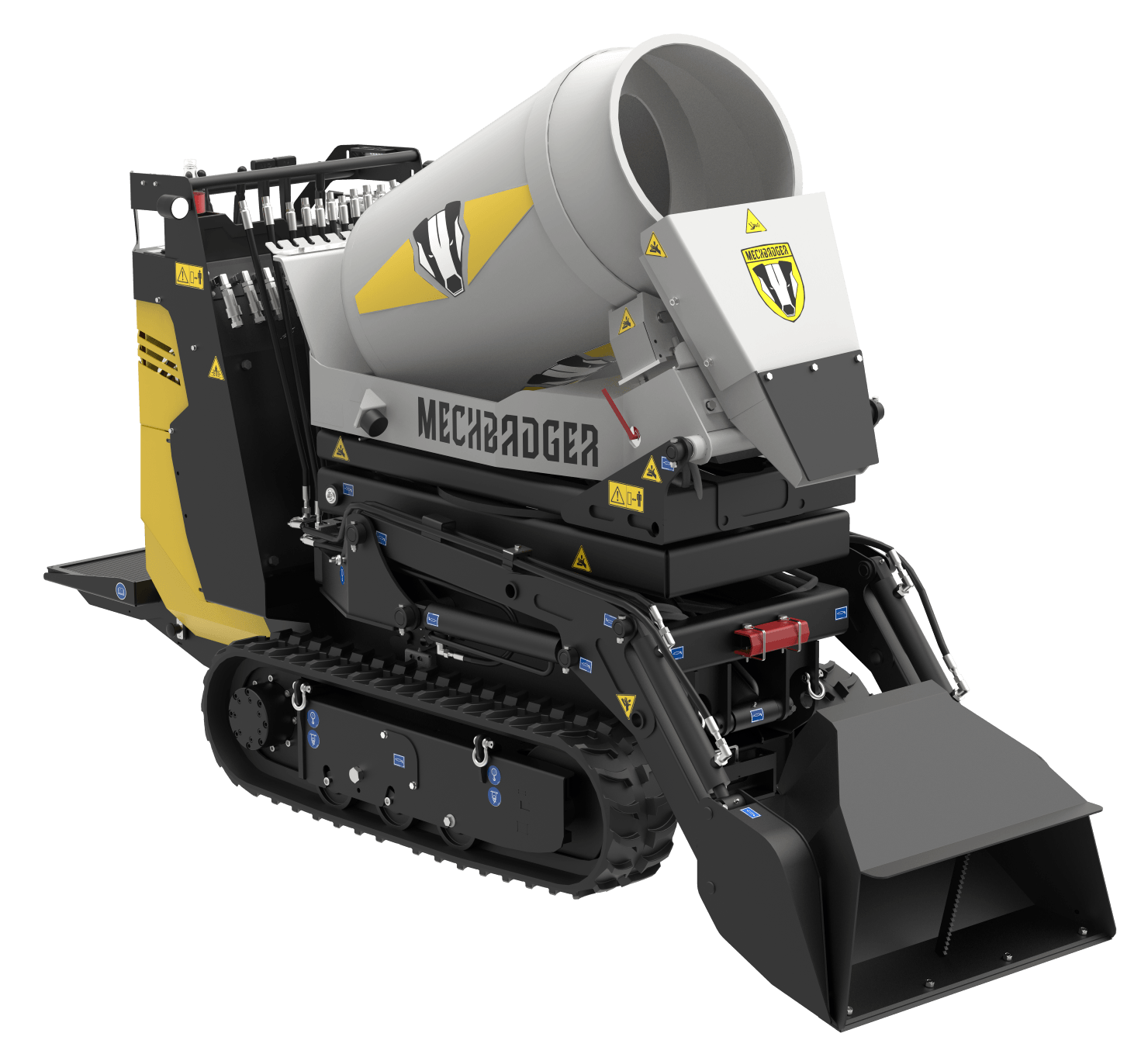

Concrete mixer

Self loading and bag breaker

90° rotation of the barrel and elevation with pantograph

YOUR Equipment

CUSTOM ON REQUEST

Together we will design the most congenial equipment for you.
